Product Overview

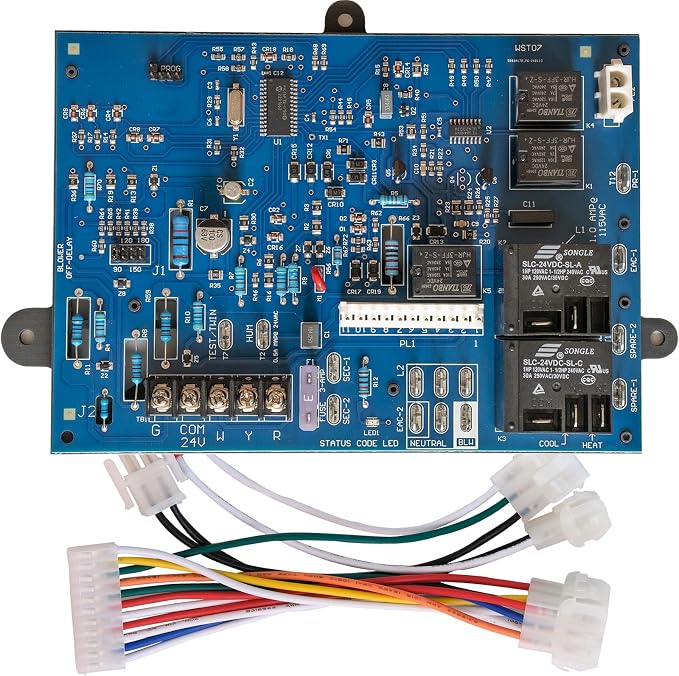

The Furnace Control Board Fits Carrier HK42FZ004, HK42FZ007, HK42FZ008, HK42FZ009, HK42FZ011, HK42FZ013, HK42FZ016, HK42FZ034 Series Furnace Control Board Module, ICM282B stands out with its thoughtfully designed character and satisfying experience, ideal for common scenarios. Featuring Metal or High-Temperature Plastic, available in blue. Notable features include furnace control and control circuit, contributing to its versatile character.
Key Features

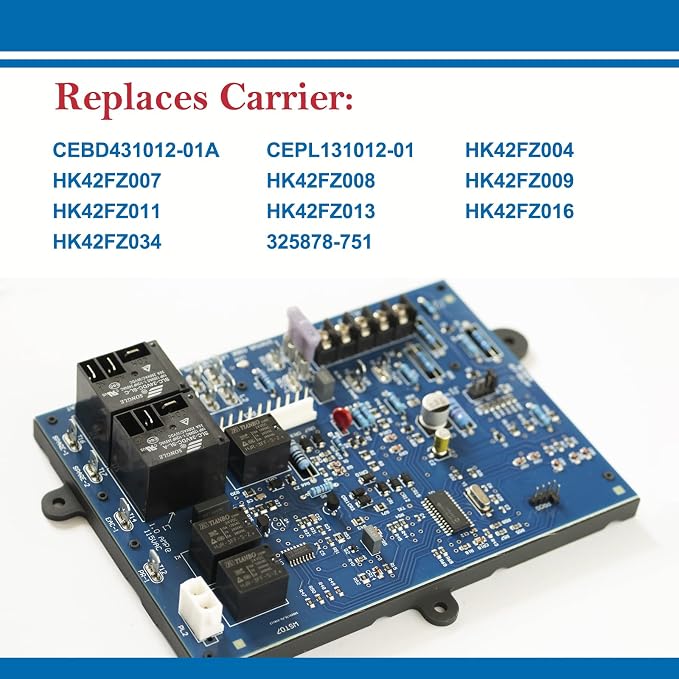

- This furnace control circuit board fixed speed furnace control replaces the following Carrier modules:CEBD431012-01A, CEPL1311012-01, HK42FZ004, HK42FZ007, HK42FZ008, HK42FZ009, HK42FZ011,HK42FZ013, HK42FZ016, HK42FZ034, 325878-751.
- Features: Controls gas valve, ignitor, blower motor, inducer, humidifier and air cleaner. Microprocessor-based, designed for 100% gas shutoff in case of ignition failure.Reverse polarity protection, secondary brownout voltage protection, compatible with a 24 VAC standard thermostat ,provides diagnostic LED to aid in troubleshooting.
- Software for enhanced controls operation in counterflow and downflow furnace applications.Use caution when installing and servicing the furnace to avoid and control electrostatic discharge.
- Range: 98 to 132 VAC at 60 Hz Ignitor: 5A at 120 VAC. Cool Blower: 30A, 2 HP,240 VAC Heat: 5A, 1/2 HP, 240 VAC Inducer Motor: 4A, FLA-8.0 LRA at 120 VAC Gas Valve.
- Note: to save yourself some hassle, please take a picture of the old one before removing it.,make sure getting the wires on the correct terminals.Please feel free to contact us if you have any questions about our products, your satisfaction would be our greatest motivation.
Why Choose the NEALMART Furnace Control Board Fits Carrier HK42FZ004
The Furnace Control Board Fits Carrier HK42FZ004, HK42FZ007, HK42FZ008, HK42FZ009, HK42FZ011, HK42FZ013, HK42FZ016, HK42FZ034 Series Furnace Control Board Module, ICM282B earns its place through value-driven quality and thoughtful features including furnace control. The result is practical use that lasts.
Best For
The NEALMART Furnace Control Board Fits Carrier HK42FZ004 is best suited for: 100% gas shutoff in case of ignition failure.
Quick Summary
The NEALMART Furnace Control Board Fits Carrier HK42FZ004 is a Circuit Boards product by NEALMART. Color: blue. Brand: NEALMART. Material: Metal or High-Temperature Plastic. Display Type: LED. Operating Temperature: 50 Degrees Celsius.
Product Specifications
| Specification | Details |
|---|---|
| Color | blue |
| Brand | NEALMART |
| Material | Metal or High-Temperature Plastic |
| Display Type | LED |
| Operating Temperature | 50 Degrees Celsius |
